Pneumatic Vise for CNC Machining: Choose the Right Size and Force

The part and jaw plan come before the model

Begin with the part drawing and the stock that enters the machine. Mark the finished datum faces, the surfaces that the jaws may touch and the areas that must stay open for the cutter. Add the stock variation that the jaws must accept. This simple clamp map shows whether a self-centering vise is a good starting point.

A self-centering vise moves both jaws toward the centre. That can help keep a part near the same centreline as stock size changes. It does not create a finished datum by itself. Jaw machining, contact height, chips, burrs and part shape still affect where the part sits.

Look at the whole tool path. A wide body or tall jaw may block a short tool. A small body may improve access but leave too little jaw contact. Include the probe, coolant nozzle, spindle nose and any neighbouring fixture in the clearance check.

For a thin wall, map where the part can bend. Move jaw contact toward supported areas when possible. If the drawing does not define safe clamp faces, ask the part or fixture engineer to approve them before choosing a force.

The current NEXTAS pneumatic V1 range

The NEXTAS pneumatic vise product page lists three pneumatic V1 models. The table below repeats those current product-page values so a buyer can compare the right row. They are product values, not a promise that one model will hold every part or meet every finished tolerance.

All three rows list repeatable clamping accuracy of <0.01 mm. Read that as a model specification for repeated clamping. It is not a finished-part tolerance, a machine accuracy statement or proof from your own setup. The drawing, jaws, part and test method must still be agreed.

Clamping force must match the cut and the jaw contact

A force value is useful only when the load path is known. The cutter pushes the part in a direction. The jaws and supports must carry that load without slip, lift or harmful bending. A larger catalog force cannot repair poor contact or a weak part wall.

Give the supplier the material, tool diameter, roughing or finishing step, depth and width of cut, feed direction and part overhang. If the exact cutting force is not known, mark it as an engineering input. Do not replace it with a made-up safety factor.

Jaw contact matters as much as the vise size. Narrow contact can mark soft stock or load one small area. Low contact may let a tall part turn. Tall jaws may add leverage to the slide. Show the planned jaw shape and contact height on the RFQ drawing.

Choose the lowest force that passes the real test. Too little force can allow movement. Too much force can bend a thin part, damage the jaw contact or hide a weak support plan. A pressure setting becomes a process value only after the team records the setup and result.

What the <0.01 mm catalog value does and does not tell you

Repeatable clamping accuracy asks whether the clamping unit returns in a consistent way under a stated test. It is not the same as part tolerance. The finished part also depends on the machine, spindle, tool, thermal state, jaw accuracy, stock and inspection plan.

Ask for the method behind any value used in an order. Which feature was measured? Where was the indicator placed? How were the jaws and contact faces cleaned? How many clamp cycles were run? Was the same part used? A number without a method is hard to compare or accept.

For your release test, choose a feature that matters to production. Measure it after repeated unclamp, clean, load and clamp cycles. Keep the same pressure, jaw set and work instruction. Then run a trial cut and inspect the part. This separates clamp return from the rest of the machining process.

Check the machine, mounting and service space

No pneumatic vise fits every machining centre. Start with the machine table drawing. Compare the bolt pattern, locating method and available mounting area with the selected vise drawing. If an adapter plate is needed, include its height and mass.

Build a simple stack drawing from the table to the top of the part. Check the lowest spindle position, shortest tool, probe body, rotary swing and enclosure. A vise can fit the table yet leave too little Z travel or hit a door, trunnion or neighbouring fixture.

Plan the air route before installation. Show the inlet, fitting, hose bend, guard and the space needed to service them. Keep the hose away from chips, hot swarf, sharp edges and moving axes. The image below shows a top view of one product rendering; it does not show the machine-side mounting plan.

Air and control checks belong to the complete machine

The product table lists a 0.5–0.8 MPa working range for the pneumatic V1 models. Confirm pressure at the vise inlet while the system operates, not only at the compressor. Line length, valve size, filters and other users can change what reaches the actuator.

Define the air-quality and service plan from the approved component instructions. Record how the team will find leaks, drain the air system and keep clamp faces clean. Do not invent a universal daily or monthly interval; conditions and fitted components differ.

A valve command can move the vise. It does not by itself prove that the part is clamped or that robot motion is safe. If the vise joins an automated cell, the machine builder or integrator must define sensors, permitted states, fault response, guarding and reset control. A normal process signal is not automatically a safety-rated signal.

For the deeper control chain, see the pneumatic-vise automation release guide. It explains why a buyer should separate actuator choice from PLC logic, robot permission and machine safety.

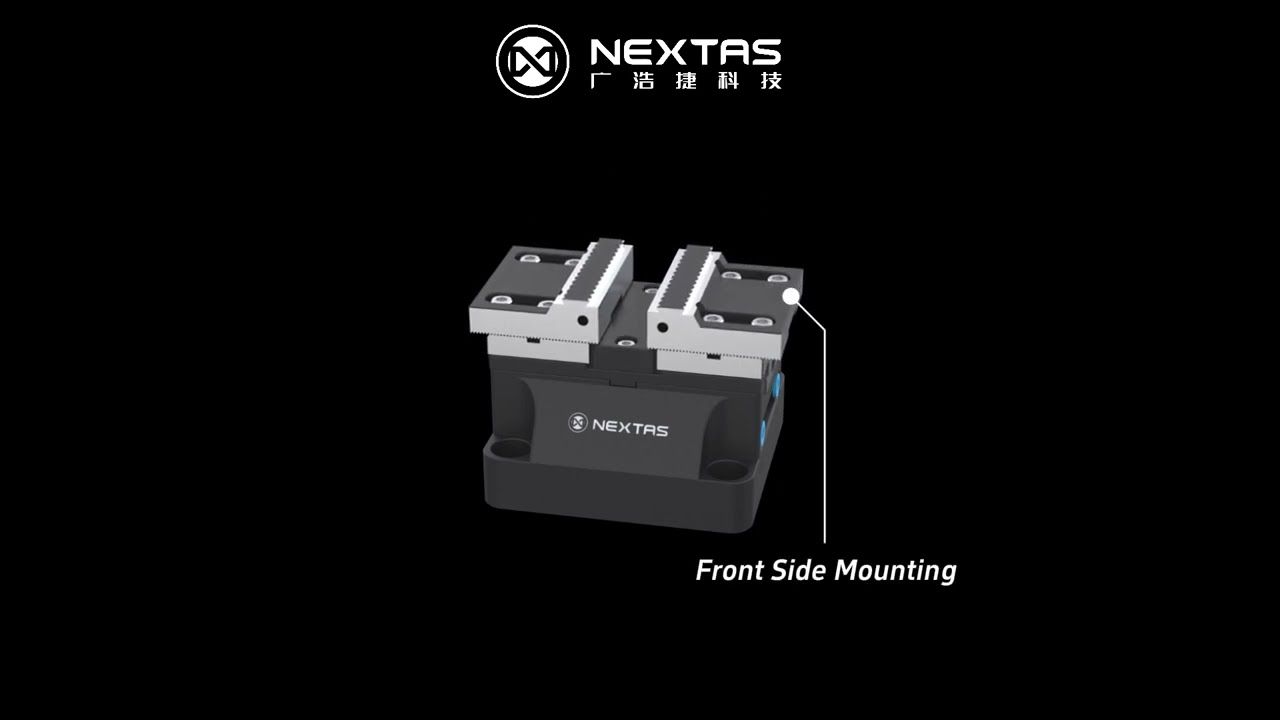

Watch NEXTAS demonstration0:28

A 28-second product view of a NEXTAS pneumatic vise; use the page specifications and engineering review for force, pressure, and integration decisions.

This short product view shows visible hardware only. It does not prove machine fit, part accuracy, cycle safety or an order-specific control scope.

A useful acceptance test follows the real loading cycle

Begin with the approved vise, jaws, pressure and part. Clean the clamp faces using the planned work instruction. Load the part as an operator or robot will load it. Check that the part seats and that hoses remain clear.

Repeat the full unclamp, clean, load and clamp cycle. Measure the chosen datum after each cycle. Record the gauge, touch point, pressure and result. Then run the cutting step with the highest expected load and inspect the features that matter.

Add fault tests before automation release. The integrator should define what happens after low pressure, a missing part, a failed seat check, a stopped robot or a machine reset. The safe response belongs to the complete cell risk assessment, not to a vise marketing claim.

Release the setup only when the recorded evidence meets the agreed limits. Keep the drawing revision, pressure setting, jaw program and inspection record together so the next shift can reproduce the approved condition.

The RFQ packet for a useful model review

• Part drawing, material, stock sizes and the production volume you want reviewed.
• Datum plan, approved jaw contact areas, support points and any thin-wall risk.
• Machine make and model, table drawing, axis travel and allowed moving mass.
• Tool path or operation sketch, including the cut with the highest expected load.
• Required jaw opening, jaw height, part overhang and clearance around the spindle or rotary axis.
• Available pressure at the planned inlet, air treatment and hose-routing limits.
• Manual or automated loading, required process feedback and the party responsible for controls and safety.
• Acceptance feature, gauge method, clamp-cycle count and the limit that will release the setup.

This packet lets NEXTAS compare P75, P110 and P150 against the same facts. The result may be a model recommendation, a request for a jaw or adapter drawing, or a finding that the pneumatic range is not right for the job. A clear rejection is better than an untested fit promise.
