What the alternative quote must cover
If you want a second source, say which parts you plan to keep. If you need a new pallet layout, cost or delivery date, put that goal in the quote brief. A family name does not prove a match. Compare the actual base and stud drawings, quoted parts and tests. Open the zero-point system page and send the receiver, stud, and loaded pallet for a quote.
A ready-made zero-point plate has a set base layout. A module project also needs a subplate and pallet made to suit the chosen bases. Check the drawings, studs, pallet thickness, air and sensors as one setup. A flexible manufacturing system (FMS) plans jobs and moves them between stations. Its handling and controls need a cell review.
A VMC is a vertical machining center. An HMC is a horizontal machining center. Name the machine and mount: VMC table, HMC tombstone, 5-axis trunnion, pallet changer, test station or robot cell. Say if pallets move between stations and which states must be checked. If the fixture type is still open, the CNC workholding selection guide compares dovetail, vise and zero-point routes.

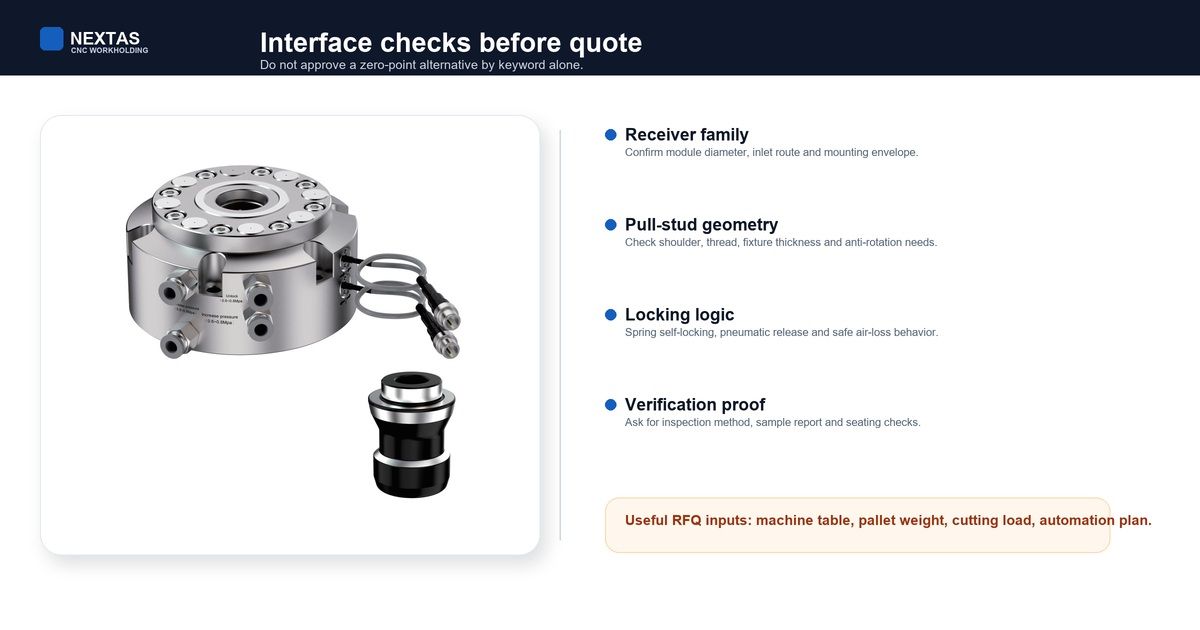

Start with the interface, not the catalog resemblance
A receiver is the machine-side base that locates and locks the matching stud. A similar shape does not prove a match. Ask for the base and stud drawings. Check the locating faces, release method, air ports and mount before comparing price.
For a retrofit, send the fixture-base and pallet-underside drawings. Show stud positions, pallet thickness, bolts, coolant exposure and paths for air and sensor cables. Check room for fitting and service. A changed Z height or blocked port can need a new mount or carrier. Put that work in the quote.

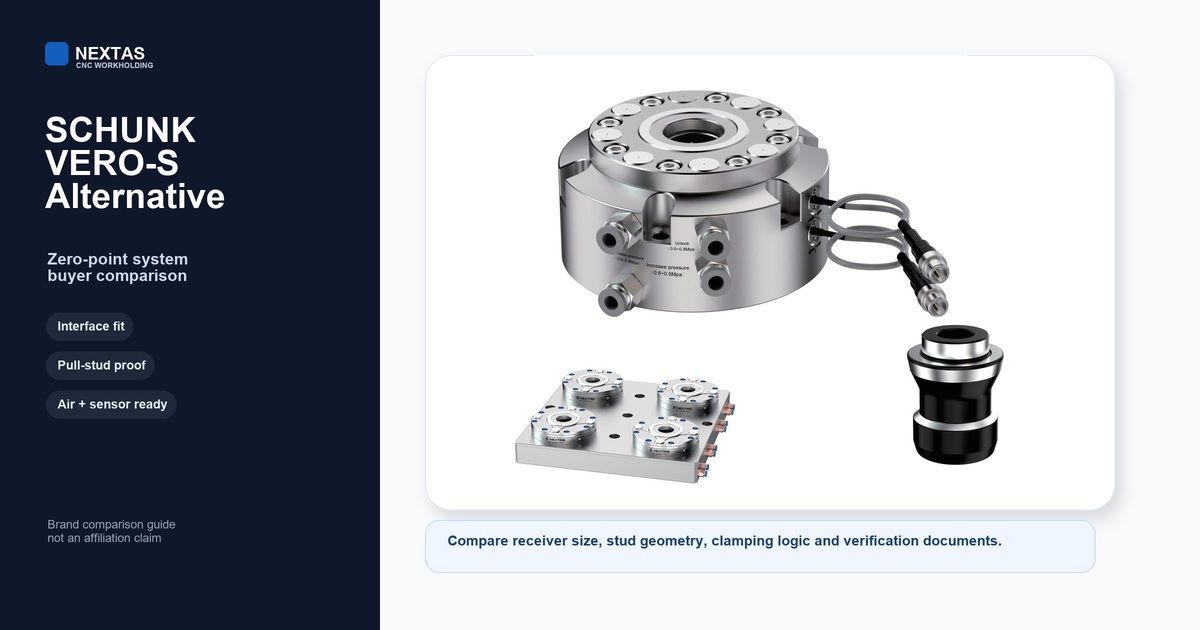

Compare MFG zero-point receiver modules if you need to design a subplate, pallet or carrier around them. Compare a ready-made zero-point clamping plate if its layout fits the job. RFQ means request for quotation. Name the route and list the parts the quote must cover.
Receiver size and pull-stud questions to settle early
Listed NEXTAS module family sizes include 85, 120, 160 and 195 mm. Use the model drawing for the actual mount dimensions. Size alone does not prove load capacity or pallet stiffness. Check allowed forces and moments, support span, pallet thickness, bolts, center of gravity and cutting loads. The listed MFG-V1 models NT-S200P85V1, NT-S200P120V1, NT-S200P160V1 and NT-S200P195V1 specify <0.003 mm repeatability. Get V2 values from the chosen released model drawing. This is a base-to-stud rating, not proof for the full loaded setup.
| Decision point | Why it matters | What to send |
|---|---|---|
| Receiver diameter | Check fit space first. Check loads and stiffness from the model limits and full setup. | Pallet size, full load, type of cut and cutting force. |
| Pull-stud geometry | The stud locates in the base. A near-match is not enough. | Stud drawing, thread, shoulder, pallet thickness and underside photos. |
| Mounting layout | Check how the subplate bolts to the table. | T-slot or bolt pattern, table drawing, rotary table model and clearance limits. |
| Air inlet direction | Check side or bottom ports against the machine and guards. | Air path, hose clearance and room for lines through the table. |
| Clamp confirmation | Check which state is sensed. Normal feedback does not prove a safety function. | PLC means programmable logic controller. It runs the machine sequence. Send its or the robot’s needs, sensing points, circuit and fault tests. |
For spare studs, check the full part code, revision, mating drawing and bolt. On each pallet, confirm which studs locate, allow movement for growth, or only clamp. Do this before buying a shared stock of studs. A similar thread or outside shape does not approve a spare.
Repeatability proof is more than a number
Set the allowed return shift before testing. Agree where to measure it: at the base, stud, pallet or part datum. Choose the master and cycle count. State the load, orientation, temperature, clamp state and cleaning steps. Agree how much uncertainty the test adds. Ask for the method and records for that joint, not just a brochure value.
Test with the real chip and coolant exposure, handling, heat changes and fixture load. Record the cleaning and care steps used in the trial. Agree which drawings, test records and service notes must ship with the order.
A small return shift does not prove part sizes. The result also depends on the fixture, support, cutting loads, jaws or nest, station alignment and probing. Check the finished part against its drawing before releasing the batch.

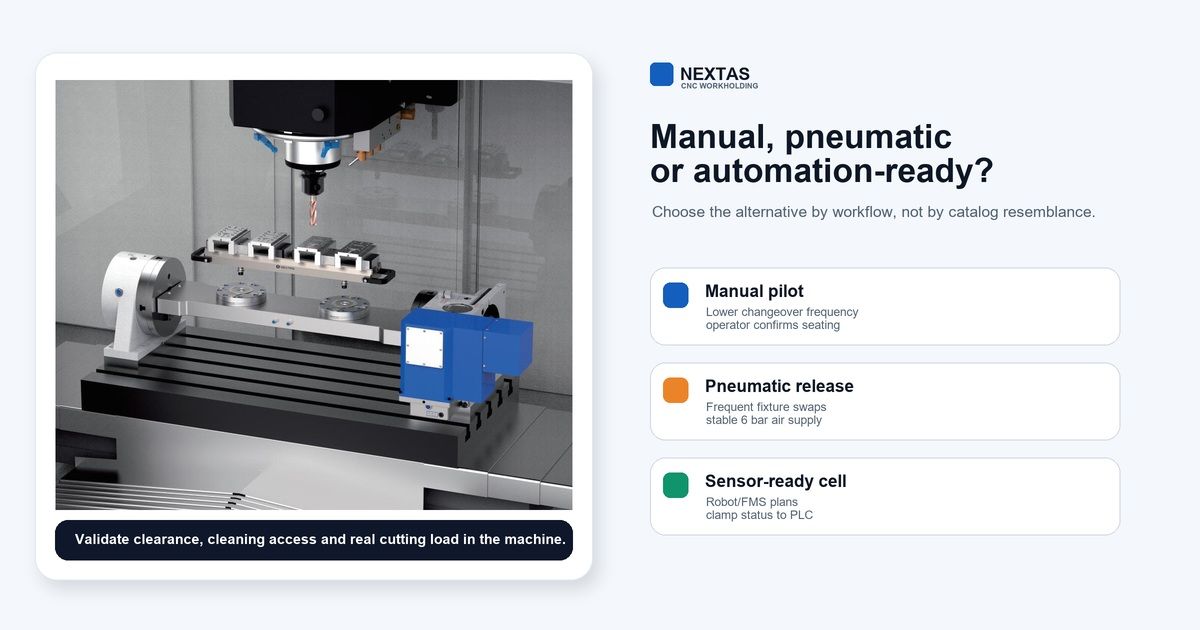

Select actuation and status feedback separately
Manual operation and pneumatic release are actuation choices. Pneumatic release uses air to open the base. Pick the choice from the change rate, tasks and model function. Sensor readiness adds feedback; it is not a third actuation type. Name the seat and lock states to be sensed, the sensing points, circuit and fault response. A normal pressure, seat or clamp signal does not prove enough force or a safety-rated function. The full cell safety plan must test guards, safe states and restart.
Confirm the selected model’s released locking design, pressure range, air quality and circuit. Measure pressure at the module during release and test complete unlocking on the installed circuit. For a robot cell, verify seat and lock feedback, cleaning, override and air-loss response, then complete the full cell acceptance before use.
If you may add sensors later, get an option drawing now. It must show ports, sensor space, cables and service access. List what is supplied now and what a later change would need. Test and approve that change before use.
When an alternative is a sensible buy
If the current process is already approved, list what the change affects. Include drawings, measured datums, programs and control checks. Involve the process and quality teams before release. Check each transfer datum where a pallet moves through machining, inspection or storage.
A trial proves only the chosen machine, pallet and workflow. It does not approve a new station. For each new machine or pallet layout, check the mount, datum alignment, loads, clearances, air and sensors. Run the needed return, process and fault tests. Record a separate pass for each station.
Cost and RFQ inputs that speed the quote
Compare quotes for the same parts and work. Count bases and studs. Add base size, subplate work, sensors, test records, spares and freight. Check each line. A price gap may come from missing scope.
Send machine, table and pallet drawings. A computer-aided design (CAD) file is a digital drawing or model; include it if you have one. Add full loaded mass, center of gravity, cutting forces and moments. Give the base and stud codes, air circuit, sensors and trial limits. Mark unknowns as unknown. Top and underside photos show access. They do not replace the joint drawings.
Use the zero-point selection guide to set return-error and pull-down checks. The quote guide helps build the files to send. For an existing stud or pallet library, use the AMF stud-transfer guide. To check a supplier’s support, use the supplier checklist.
Where NEXTAS fits in the comparison
NEXTAS can review the named base and stud, joint drawings, air paths and quote scope from your files. Ask the quote to list parts, drawing revisions, test records and open inputs. This review does not release the cut or full cell.
Name who signs off each check. The machine or cell builder checks mount loads, controls and safety functions. The process owner checks the cut and part. QA means quality assurance. That team and purchasing check the agreed drawings, test records and order scope. Record each station’s release on its own.
Need a zero-point system alternative quote?
Send base and stud drawings, loaded pallet data and trial limits. NEXTAS can name hardware to review, needed drawings and open quote inputs. Release the cut only after the chosen setup and station pass their tests.
Request Engineering ReviewFAQ
Is NEXTAS affiliated with SCHUNK or VERO-S?
No. NEXTAS is not affiliated with, endorsed by, or sponsored by SCHUNK or the VERO-S brand. This guide uses the term only as buyer search language for comparing alternative zero-point clamping system options.
Can a VERO-S-style process be replaced without redesigning fixtures?
Check base and stud drawings, mount, pallet thickness, allowed loads, clearance, air and feedback. A good fit on one machine does not approve another. Test the full setup and each station before release. A family name or outside diameter does not prove a matching joint.
What specifications should I send for a fast quote?
Send table and pallet drawings, full loaded mass, center of gravity, cutting forces and moments. Add base and stud codes, air circuit, sensors and trial limits. Send computer-aided design (CAD) files if you have them. Mark unknowns as unknown.
What repeatability target should I ask for?
Ask where and how the return shift is measured, and under which test conditions. The listed MFG-V1 receivers NT-S200P85V1, NT-S200P120V1, NT-S200P160V1 and NT-S200P195V1 specify <0.003 mm repeatability. Get V2 values from the chosen released model drawing. The base rating does not approve the full fixture stack.
How should I choose actuation and status feedback?
Manual operation and pneumatic release are actuation choices. Sensor readiness adds feedback; it is not a third actuation type. Check what the chosen circuit senses and how it reacts to faults. Normal feedback does not prove enough clamp force or a safety-rated function. Check process states and full cell safety functions on their own.
