Self-Centering Vise Jaw Selection: Serrated, Smooth, Soft, and Dovetail Jaws for Aluminium, Steel, and Titanium

Will the next roughing pass spin the blank, or will the jaws crush a thin wall? That is the real jaw choice on a self-centering vise. With matching jaws and symmetric contacts within the approved grip range, the vise centers the gripped span about its mechanical center. That does not verify the whole part’s center or machining datum. The jaw face still affects grip, marks, and the permitted clamping load.

A self-centering vise drives both jaws toward the middle at the same time. Different stock widths can share that mechanical center only with matching jaws, symmetric contacts and dimensions within the selected model and jaw drawings. Measure the actual work datum before using that center in 4-axis and 5-axis programs. This motion does not fix a jaw that is too sharp, too smooth, or too small for the cut.

This guide compares four common faces: serrated, smooth, soft, and dovetail. Use it to shortlist a face for aluminium, steel, and titanium. It does not approve a clamp force or a toolpath before the model drawing and your blank data exist.

The job fails in two opposite ways

Check for two opposing failures. The part slips under the cut. Or the clamp bends the part, and the size springs back after you unclamp.

You need enough grip to resist the cut. You also need a clamp light enough that the metal does not stay bent. A jaw that bites can let you clamp with less force. A smooth jaw often needs more force. That extra force can crush a thin wall.

Think of a window, not one magic number. Too little clamp and the blank moves. Too much clamp and the blank distorts. The jaw face moves that window. A tooth bite or an angled lock can hold the same cut with less squeeze than a wet, flat face.

Any unsourced depth, hardness or stock allowance below is a hypothetical planning input, not a shop norm or NEXTAS test result. The selected jaw and blank drawings, actual contacts, stock data and cutting load decide the permitted geometry.

What the vise centers, and what it does not

On a standard machine vise, one jaw moves and the other stays put. The part center then shifts when the blank is wide or narrow.

On a self-centering vise, both jaws move together. With matching jaws and symmetric contact within the selected model’s approved grip range, the gripped span is centered about the vise’s mechanical center. That is not proof of the whole part’s geometric center or a validated machining datum. Check the model and jaw drawings, contact symmetry, blank dimensions and measured work datum before using that center in computer-aided manufacturing (CAM).

The NEXTAS self-centering vise page lists 52 mm and 96 mm mounting, plus swap-out jaws. Jaw pads are wear parts. You can change between smooth, serrated, and soft faces without throwing away the vise body. Confirm the selected jaw drawing. Do not copy a force from this article onto an unreviewed model.

If the open question is body length rather than the gripping face, continue with the 52 mm size guide after this shortlist.

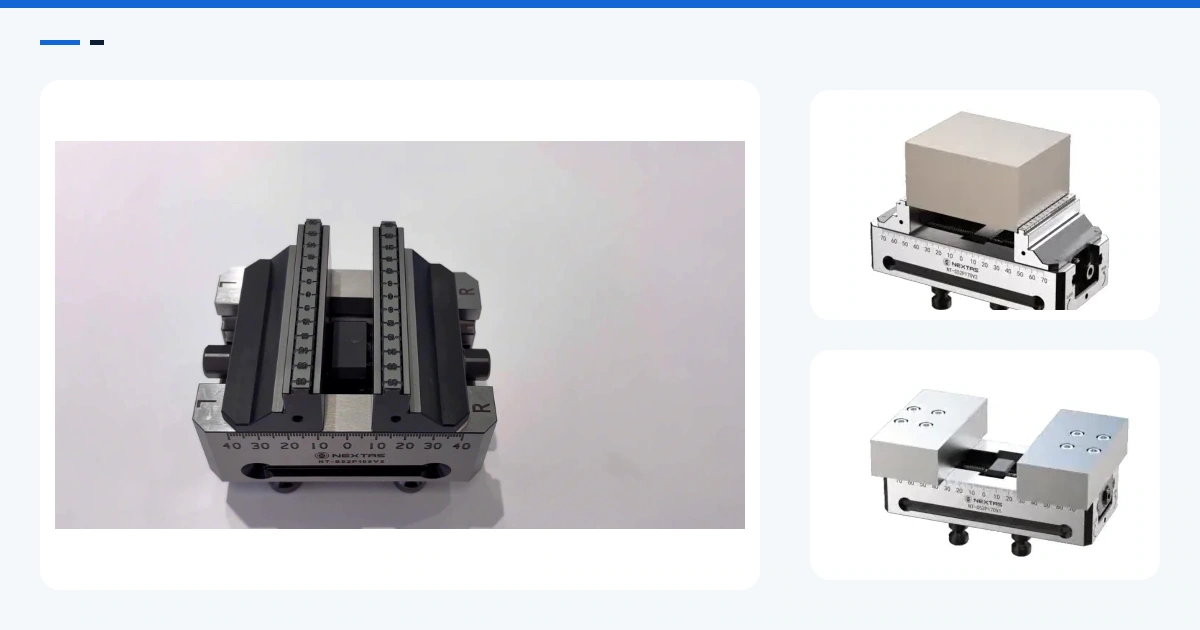

The four faces you are actually choosing

Serrated jaws bite the blank

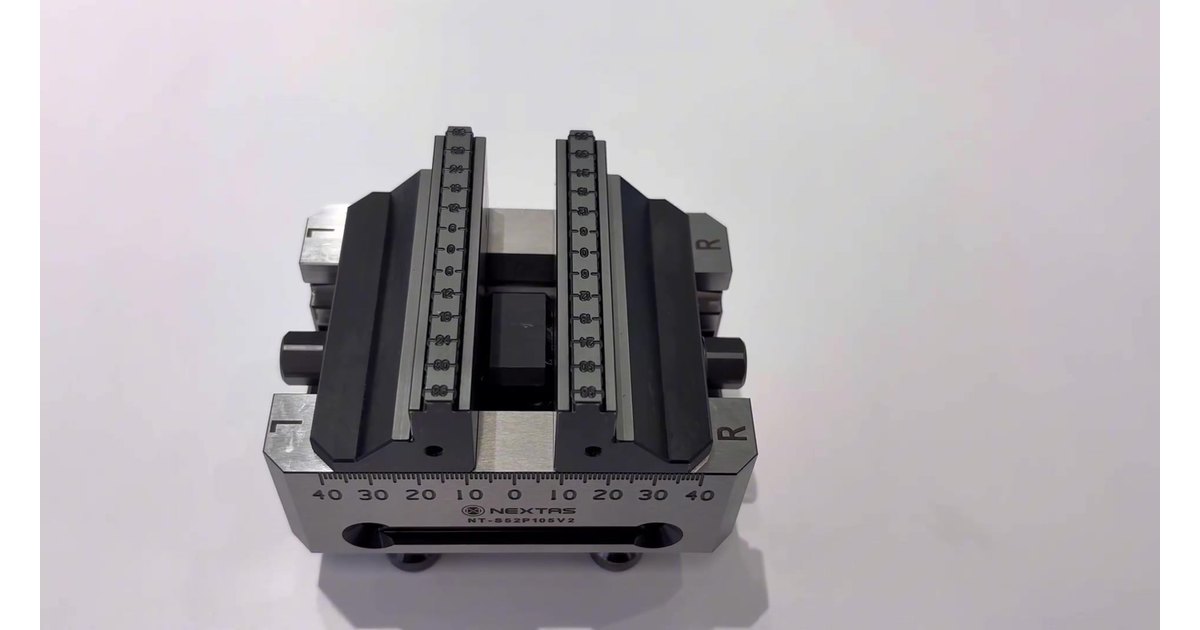

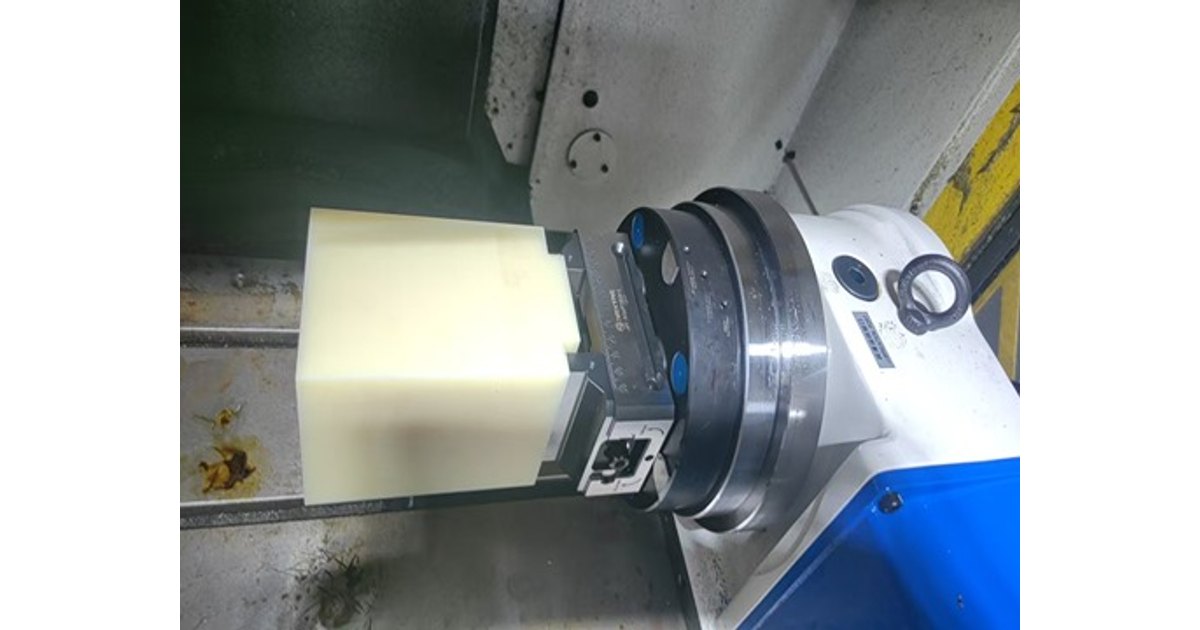

Hardened teeth press into raw stock. The teeth act like small stops, not just friction. They may resist a heavy first cut better than a flat face when the selected teeth can engage the actual stock. Check material, contact depth, coolant and friction, cutting loads and the approved jaw limits before choosing that grip. They also leave tooth marks. Plan to face those marks off later, or keep them on a tab you will cut away.

Set tooth contact height from the selected jaw and stock drawings; do not bury teeth in a thin wall. A hypothetical stock reading of 38 on the Rockwell C hardness scale (HRC) does not establish a universal tooth-engagement limit. Check actual grade, hardness, heat treatment, raw surface and tooth geometry. If a reviewed plan uses pre-stamping, it is a separate press step, not a NEXTAS vise function.

Smooth jaws protect a finished face

Smooth hard jaws are flat, ground steel. They rely on friction only. They do not cut tooth marks into a ground or cosmetic face. That is their job on a second operation. Smooth jaws can still dent or scratch a surface through excess pressure, sharp contact edges or trapped chips; verify contact marks at the selected clamp load.

They are a weak first choice for heavy roughing. Oil and flood coolant make them more slippery. If you raise clamp force to stop slip, a hollow or thin part can crush. Use them when the face you grip must stay clean, and the cut is light enough for friction to hold.

Soft jaws wrap the part

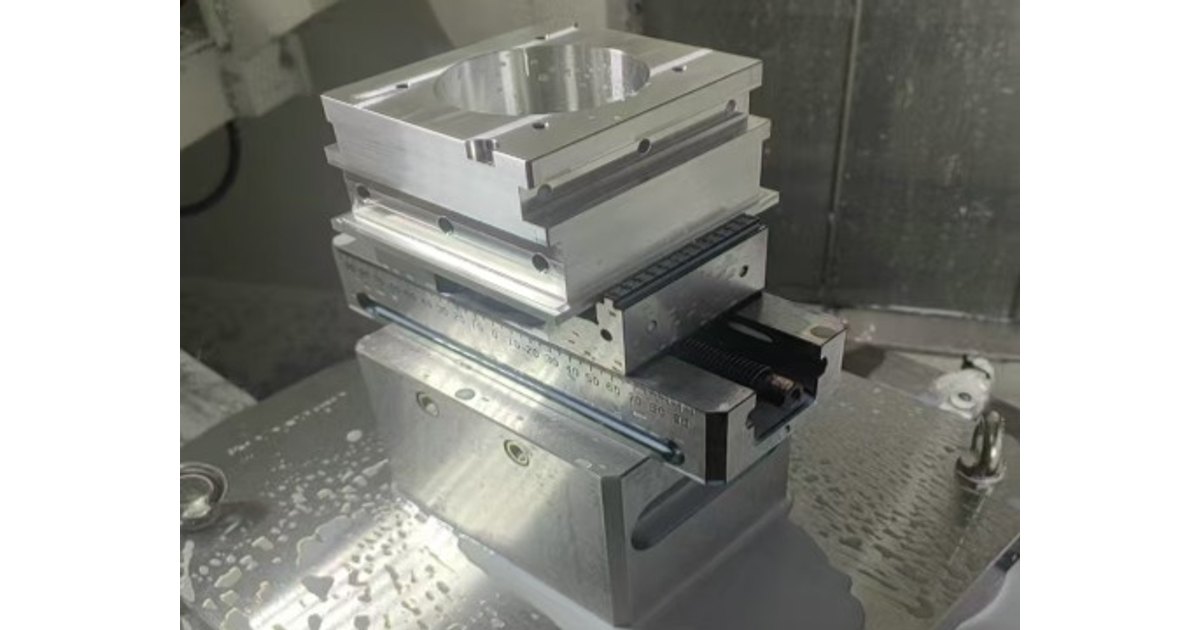

Soft jaws are machinable blanks on the vise. You cut a pocket that matches the in-process part. The pocket spreads the clamp over a large area. That is the usual finish-cut method after the first operation has created locating faces.

Cut that pocket while the jaws are already clamped against a spacer or gauge block. That takes slack out of the screw before the pocket exists. Leave corner undercuts. A milling tool leaves a radius. A square part will hang on that radius unless you cut a relief.

Aluminium soft jaws machine fast and are kinder to aluminium parts. They wear quickly on sharp steel or titanium corners. Steel soft jaws take longer to cut. They hold their pocket shape better on those harder parts.

Dovetail jaws lock on an angle

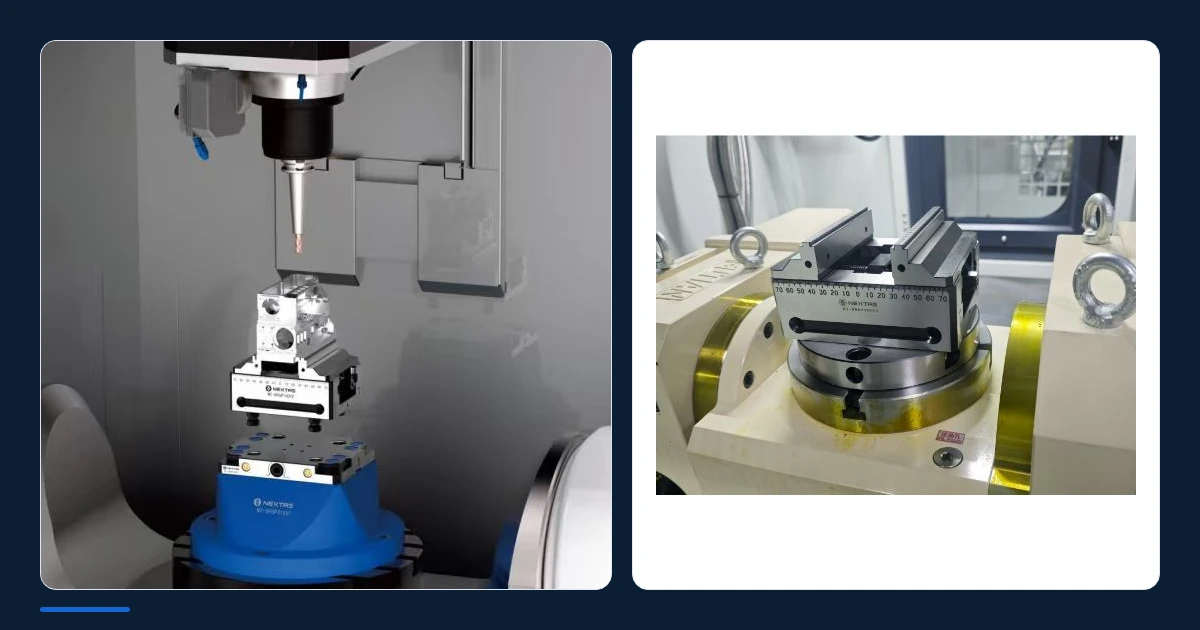

A dovetail uses mating angled profiles; 45° is one profile discussed here. The selected drawing defines angle, depth, contact width and any relief. Check blank strength and cutting loads. Five-side access still depends on the complete vise or fixture stack, spindle, tool holder and every programmed tilt.

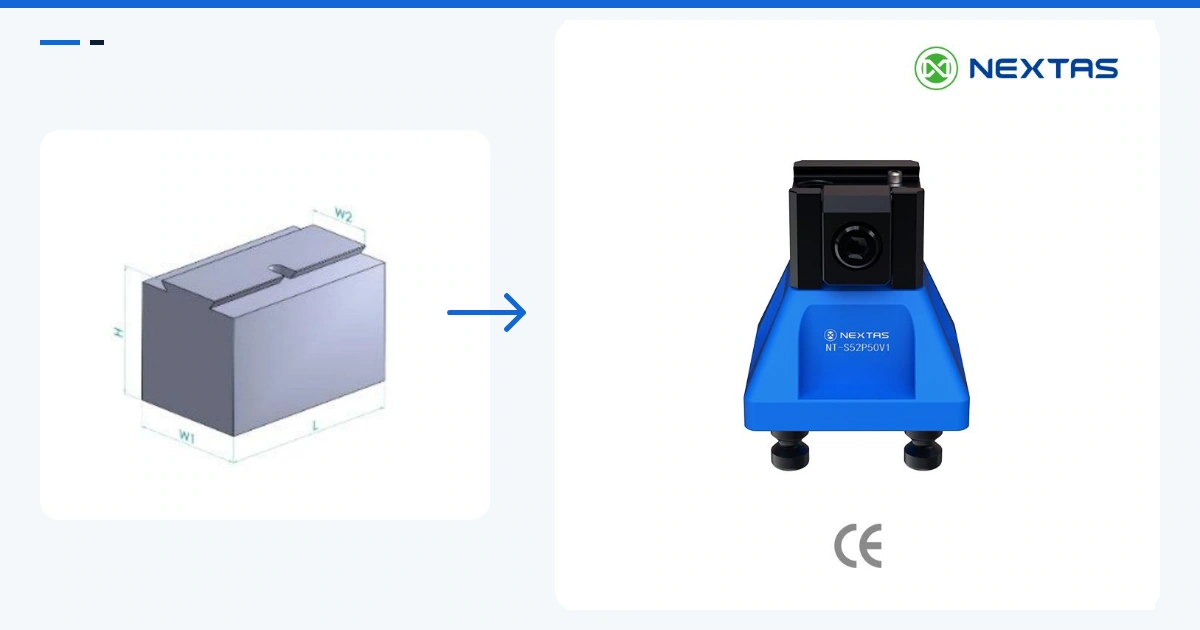

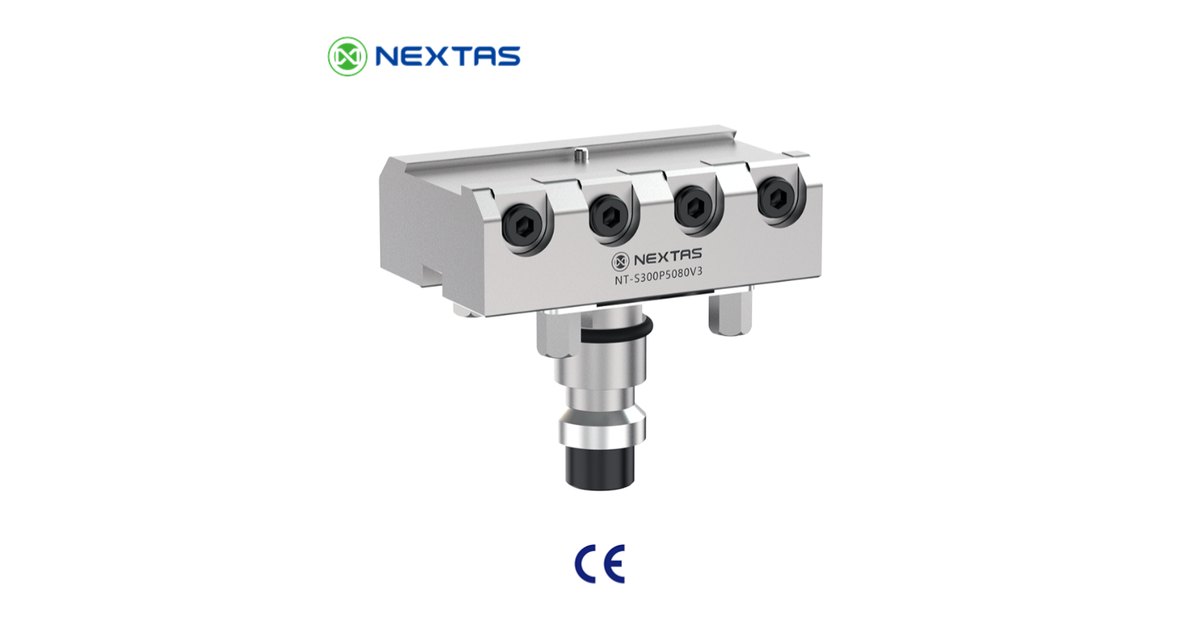

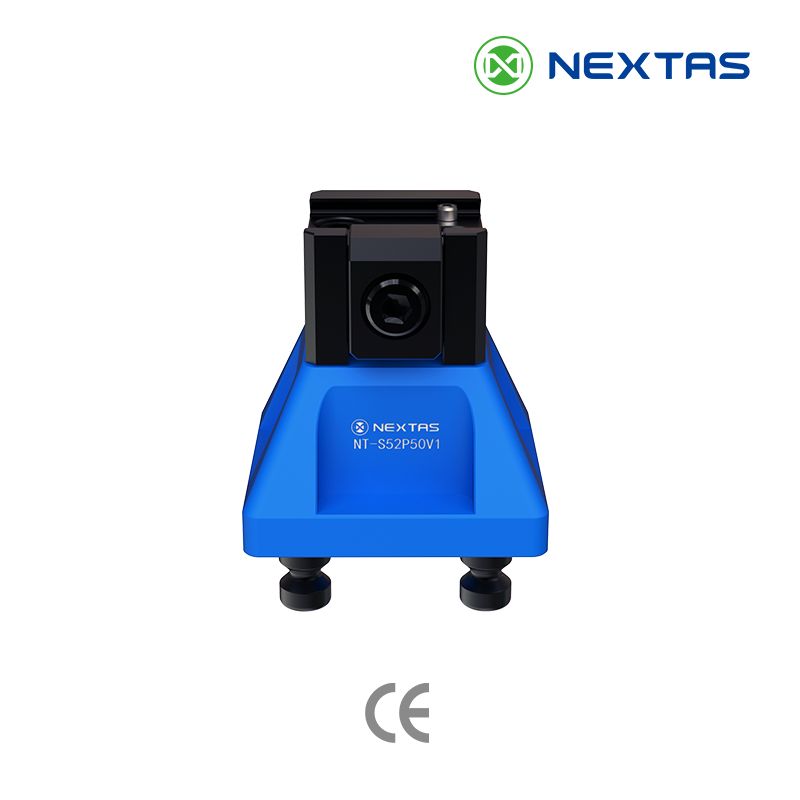

This is not the same product as a dedicated dovetail fixture. Vise dovetail jaws keep the self-centering body. A dedicated fixture is a separate route when every blank can take a repeatable 45° tab and you want that compact grip on a pallet. Compare those two routes in the vise versus dovetail fixture guide if the fixture type is still open.

Split first cut and finish cut

Shops usually split the job. First cut removes bulk metal from a raw blank. Marks on a sacrificial face are acceptable if you will face them off later. Finish cut holds surfaces you must keep. Crush and springback then show up in the inspection report.

Do not run both jobs on the same jaw face just because the vise is already on the table. Change the face when the contact requirement changes. If five-side access is the real constraint, continue with the 5-axis vise setup guide after the jaw shortlist.

Aluminium still crushes under a point load

Aluminium machines easily. It also bends more than steel under a small contact patch. That is why thin walls crush even when the vise is “only snug.”

First cut: review fine serrations or a matching dovetail profile against the actual blank and load. A hypothetical 1.0–1.5 mm dovetail depth is not a general aluminium starting value. Use the selected drawing, contact width and strength check, then accept grip, marks and distortion during the trial cut.

Finish cut: use aluminium soft jaws that match the part. Keep clamp force down on thin walls. If the part is still bent in the jaws, it will spring when you open them.

Steel needs grip more than a pretty face

Steel takes more cutting force. Smooth jaws often cannot hold a heavy roughing pass, especially with flood coolant.

First cut: check actual steel grade, hardness and surface before selecting teeth, pre-stamping or a matching 45° dovetail. Two to three millimetres is a hypothetical depth example, not a steel rule. The selected drawing, contact geometry and cutting loads must approve the preparation and trial cut.

Finish cut: use steel soft jaws. Aluminium pockets wear fast against steel corners and lose the datum you just created.

Titanium roughing: check friction grip under load and vibration

Titanium grade and stock condition affect cutting loads and tooth engagement. Heat stays in the cut, and the part can push away and vibrate. A smooth friction grip is a poor starting plan for heavy roughing; vibration can break that grip. Serrated teeth may wear depending on alloy grade, actual hardness, heat treatment, raw surface and tooth geometry. Do not assume that every titanium blank has the same hardness or surface response; check the selected jaw drawing and actual stock.

First cut: a matching dovetail or pre-stamped serration can be candidates for the actual titanium grade and blank. Neither is approved from the metal name. Check profile, contact area, cutting load, clamp limits and tool path, then test slip, wear and distortion. Review any friction-only roughing grip against the same evidence.

Finish cut: use steel soft jaws with corner relief. Titanium can flex locally. The pocket has to support ribs and floors, not only pinch two points.

How the first shortlist looks by metal

Read one row at a time. Then check the selected jaw drawing. Do not copy a column as an order.

Planning shortlist only. Force, depth, and hardness limits belong to the named jaw drawing, not to this table.

There is no universal winner. A thin aluminium housing often starts with a shallow dovetail and finishes in aluminium soft jaws. A 4140 roughing blank often starts with a deeper dovetail or a pre-stamped bite. A titanium rib often needs the form lock first, then a steel pocket. Write the failure you must avoid before you compare quotes.

Four checks before the first clamp

Keep one dovetail angle in the shop

Use the angle and depth in the selected mating drawing. If several jobs share a profile, check each blank, contact area, cutting load and tool path before standardizing it. A 45° profile in one assembly does not approve deeper or shallower preparation in another. Deburr only as the approved preparation procedure allows.

Extra stock at the base is not optional

A sacrificial tab or tooth contact needs stock that can be removed later. A hypothetical 3–4 mm base allowance is not a universal preparation value. Calculate the allowance from the selected profile, contact width, remaining stock strength, final base and removal tool path. Check the full stack and all tilt positions in CAM before cutting the blank.

Soft-jaw pockets have to be cut under load

Always clamp against a spacer in the same direction as the later production clamp. Then cut the pocket. Skip that step and the pocket is cut in the wrong place once the screw takes up slack. Program corner relief at every square inside corner.

Thick plate can move after the first roughing pass

Heavy milling on cold-rolled steel or thick 7075 plate can release leftover stress. Rough one side. Unclamp. Let the part move. Reclamp lighter, then finish. Transfer to custom soft jaws for the final face. This is a process check, not a jaw brand claim.

Send the metal, the cut, and the grip face

For a first jaw review, send this brief. It lets NEXTAS compare serrated, smooth, soft, and dovetail faces against the same part instead of quoting the most aggressive bite by default.

• Metal: grade, hardness if known, and whether the blank is sawn, forged, or already machined. Write “unknown” if a field is open.
• Cut: first cut, finish cut, or both. Name the main cut direction and whether flood coolant is used.
• Part: wall thickness, cosmetic faces, and how much extra stock you can leave at the base.
• Grip: which faces can take marks, whether a 45° tab can be pre-cut, and 52 mm or 96 mm mounting.
• Scope: candidate jaw faces, quantity, and whether a dedicated dovetail fixture should be compared as well.

Ask for the jaw drawings, allowed grip depth, and the pocket or tab prep that belongs to the named models. The process owner still has to prove seating, clearance, and first-part inspection on the machine.
